Item: 02-12954 Model: XPS230/SSAAA/TSS/TF/STF/0504 Series: Pro-Flo Shift Wetted material: Stainless steel Diaphragm material: PTFE / Hytrel® Nominal fluid port size: 1-inch Construction: Bolted
WILDEN / PRO-FLO SHIFT SERIES

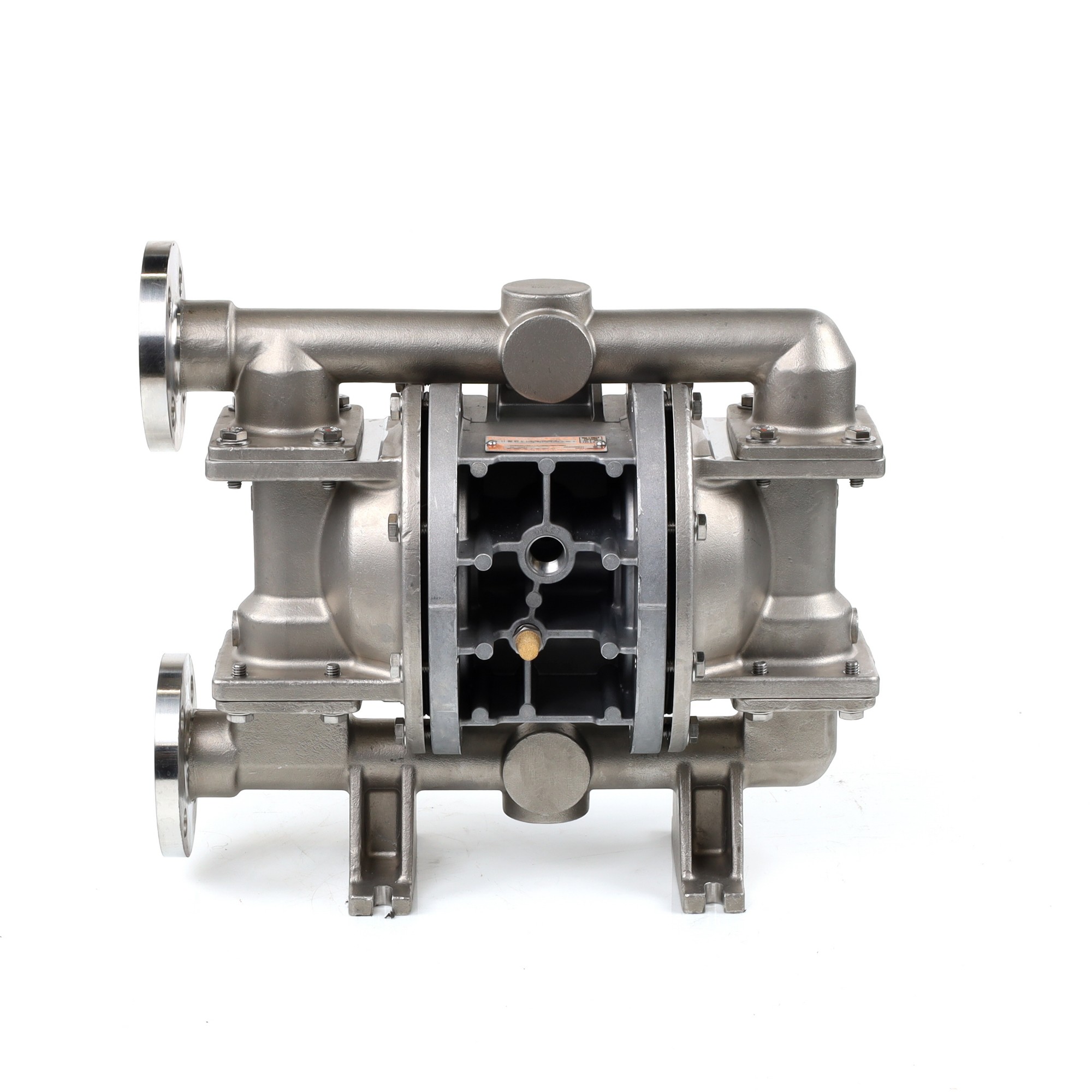

This 1-inch Pro-Flo Shift air-operated double-diaphragm pump uses stainless steel wetted housing and PTFE / Hytrel® diaphragms. Its bolted construction is identified by the complete ordering code below.
Complete model
XPS230/SSAAA/TSS/TF/STF/0504
FLUID PORT SIZE
1-inch
MAXIMUM FLOW
≈ 196.8 L/min
MAXIMUM PRESSURE
120 psig
| Brand / item number | WILDEN / 02-12954 |
|---|---|
| Pump series | Pro-Flo Shift |
| Nominal fluid port size | 1 in |
| Construction | Bolted |
| Wetted housing | Stainless steel |
| Diaphragm material | PTFE / Hytrel® |
| Diaphragm design | TRADITIONAL |
| Diaphragm stroke | Full-Stroke |
| Check ball material | PTFE |
| Valve seat material | Stainless steel |
| Power source | Compressed Air |
| Inlet / discharge orientation | Side Left / Side Left |
| Maximum flow | 52 US gpm (approximately 196.8 L/min) |
|---|---|
| Maximum operating pressure | 120 psig (approximately 8.3 bar) |
| Maximum air supply pressure | 120 psig (approximately 8.3 bar) |
| Maximum solids diameter | 0.25 in (approximately 6.3 mm) |
| Listed dry suction lift | 17 ft (approximately 5.18 m) |
| Listed operating temperature | 40–220 °F (approximately 4.4–104.4 °C) |
| Self-priming | Yes |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Aluminum |
|---|---|
| Outer pistons | Stainless steel |
| Wetted O-rings / gaskets | PTFE |
| Hardware material | Stainless steel |
| Muffler | Aluminum |
| Special option code | 0504 |
Use the trace for this diaphragm configuration. Click to view the full-size image.
Use the trace for this diaphragm configuration. Click to view the full-size image.
AIR REPAIR KIT
Air distribution service kit matched to this 1-inch Pro-Flo Shift XPS230 configuration. Confirm the complete pump code when ordering.
WET-END REPAIR KIT
Wetted-end service kit matched to this 1-inch bolted pump with PTFE / Hytrel® diaphragms. Match the installed elastomers and full ordering code.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 02-12954 and XPS230/SSAAA/TSS/TF/STF/0504, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
