Item: 02-13003 Model: P2/SSPPP/TSU/TF/STF/2079 Series: Pro-Flo Wetted material: Stainless steel Diaphragm material: PTFE Nominal fluid port size: 1-inch Construction: Clamped Connection standard: TRI-CLAMP
WILDEN / PRO-FLO SERIES

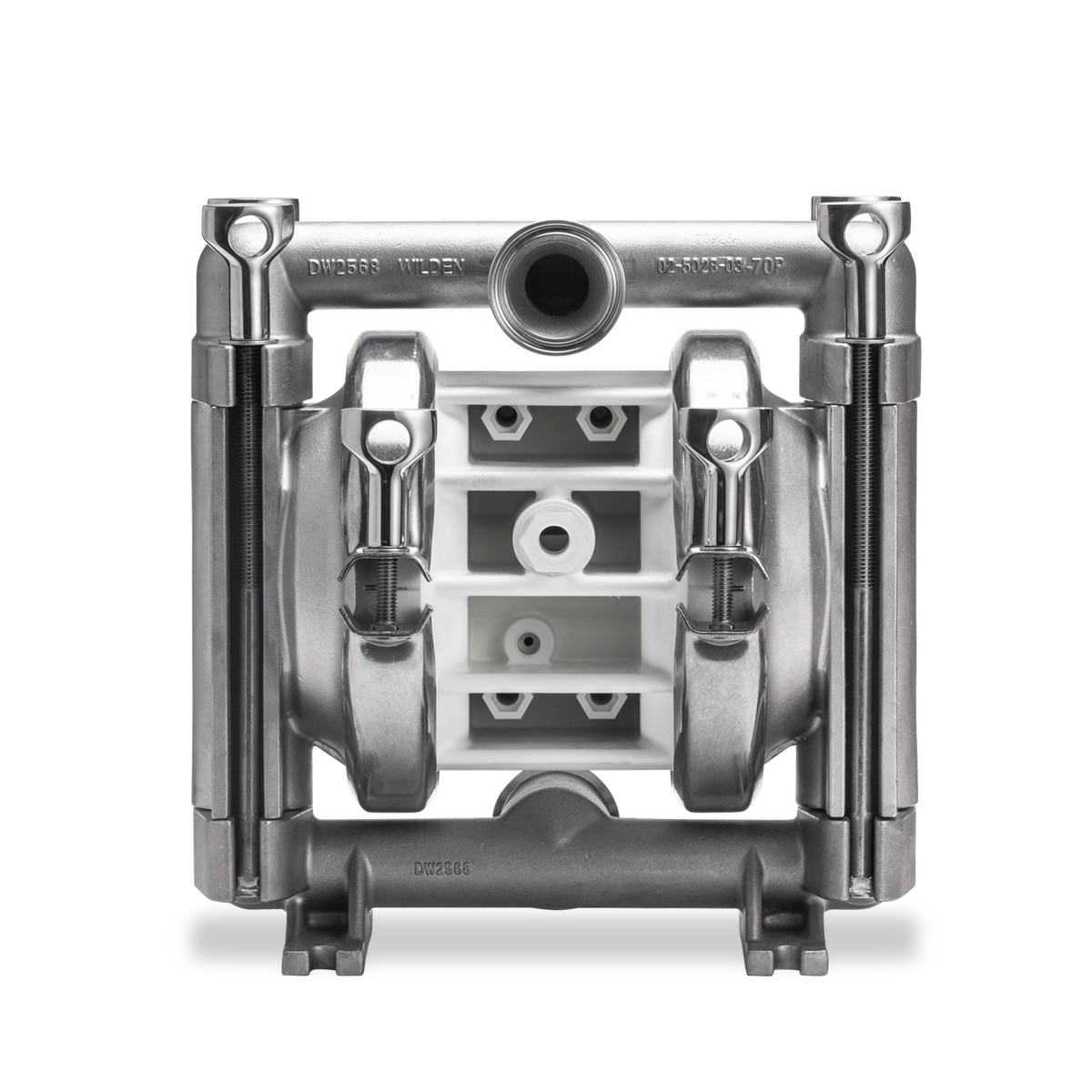

This 1-inch Pro-Flo air-operated double-diaphragm pump uses stainless steel wetted housing and PTFE diaphragms. Its clamped construction is identified by the complete ordering code below. Fluid connections use the TRI-CLAMP standard.
Complete model
P2/SSPPP/TSU/TF/STF/2079
FLUID PORT SIZE
1-inch TRI-CLAMP
MAXIMUM FLOW
≈ 155.2 L/min
MAXIMUM PRESSURE
120 psig
| Brand / item number | WILDEN / 02-13003 |
|---|---|
| Pump series | Pro-Flo |
| Nominal fluid port size | 1 in |
| Construction | Clamped |
| Wetted housing | Stainless steel |
| Diaphragm material | PTFE |
| Diaphragm design | TRADITIONAL |
| Diaphragm stroke | Reduced-Stroke |
| Check ball material | PTFE |
| Valve seat material | Stainless steel |
| Connection standard | TRI-CLAMP |
| Power source | COMPRESSED AIR |
| Inlet / discharge orientation | CENTER HORIZONTAL BACK / CENTER HORIZONTAL FRONT |
| Maximum flow | 41 US gpm (approximately 155.2 L/min) |
|---|---|
| Maximum operating pressure | 120 psig (approximately 8.3 bar) |
| Maximum air supply pressure | 120 psig (approximately 8.3 bar) |
| Maximum solids diameter | 0.13 in (approximately 3.3 mm) |
| Listed dry suction lift | 9.1 ft (approximately 2.77 m) |
| Listed operating temperature | 40–175 °F (approximately 4.4–79.4 °C) |
| Self-priming | Yes |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Polypropylene |
|---|---|
| Outer pistons | Stainless steel |
| Wetted O-rings / gaskets | PTFE |
| Hardware material | Stainless steel |
| Muffler | Plastic |
| Air inlet connection | .25" FNPT |
| Special option code | 2079 |
Use the trace for this diaphragm configuration. Click to view the full-size image.
Use the trace for this diaphragm configuration. Click to view the full-size image.
AIR REPAIR KIT
Air distribution service kit matched to this 1-inch Pro-Flo P2 configuration. Confirm the complete pump code when ordering.
WET-END REPAIR KIT
Wetted-end service kit matched to this 1-inch clamped pump with PTFE diaphragms. Match the installed elastomers and full ordering code.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 02-13003 and P2/SSPPP/TSU/TF/STF/2079, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
