Item: 02-13156 Model: GPS220/SSAAA/TXU/TF/STF Series: Pro-Flo Shift Wetted material: Stainless steel Diaphragm material: PTFE / Conductive Buna-N Nominal fluid port size: 1-inch Construction: Bolted Connection standard: NPT
WILDEN / PRO-FLO SHIFT SERIES

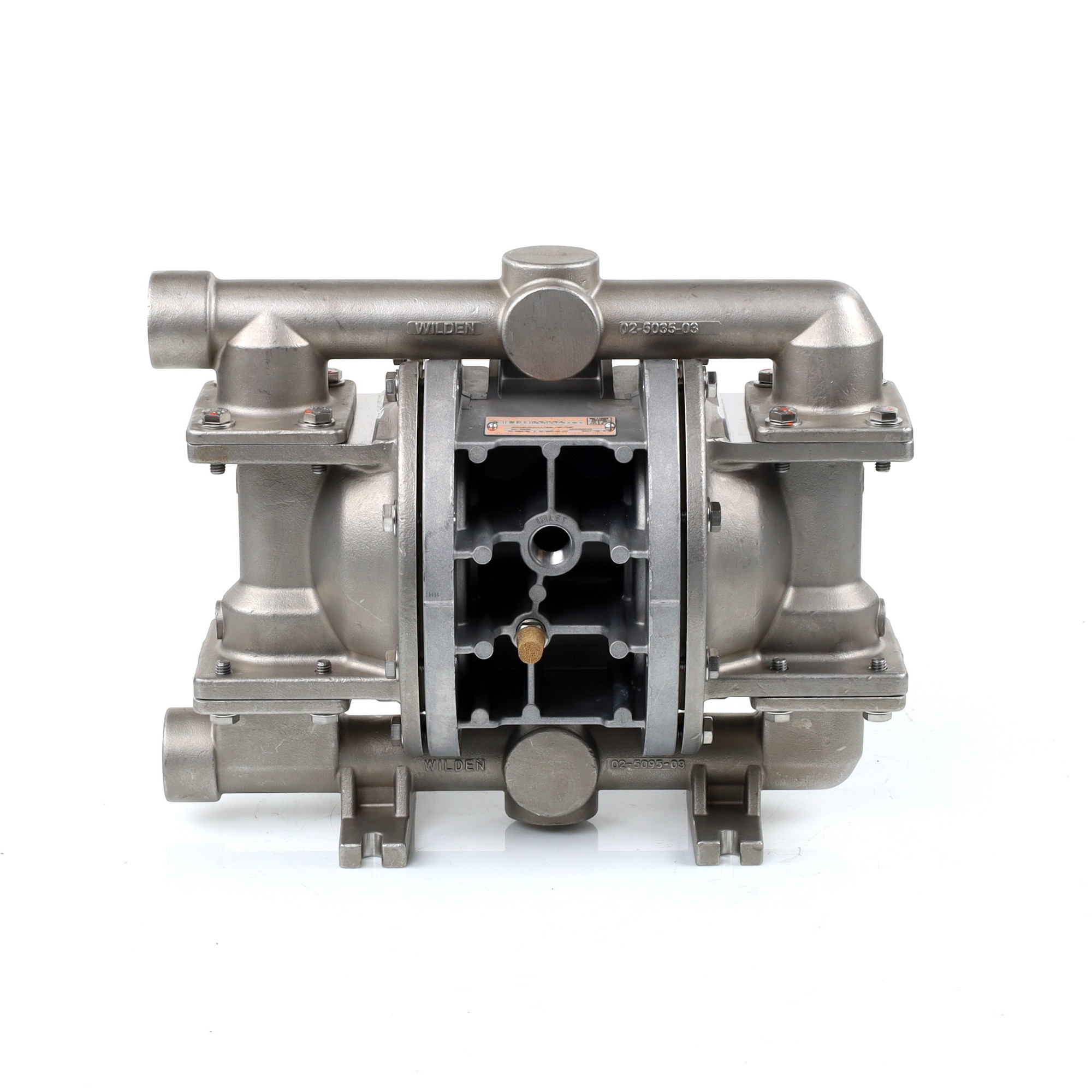

This 1-inch Pro-Flo Shift air-operated double-diaphragm pump uses stainless steel wetted housing and PTFE / Conductive Buna-N diaphragms. Its bolted construction is identified by the complete ordering code below. Fluid connections use the NPT standard.
Complete model
GPS220/SSAAA/TXU/TF/STF
FLUID PORT SIZE
1-inch NPT
| Brand / item number | WILDEN / 02-13156 |
|---|---|
| Pump series | Pro-Flo Shift |
| Nominal fluid port size | 1 in |
| Construction | Bolted |
| Wetted housing | Stainless steel |
| Diaphragm material | PTFE / Conductive Buna-N |
| Diaphragm design | TRADITIONAL |
| Diaphragm stroke | Reduced-Stroke |
| Check ball material | PTFE |
| Valve seat material | Stainless steel |
| Connection standard | NPT |
| Product family | CSA CERTIFIED |
| Power source | Natural Gas / Compressed Air |
| Inlet / discharge orientation | Side Left / Side Left |
| Maximum solids diameter | 0.25 in (approximately 6.3 mm) |
|---|---|
| Listed operating temperature | 40–180 °F (approximately 4.4–82.2 °C) |
| Self-priming | Yes |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Aluminum |
|---|---|
| Outer pistons | Stainless steel |
| Wetted O-rings / gaskets | PTFE |
| Hardware material | Stainless steel |
| Muffler | None |
AIR REPAIR KIT
Air distribution service kit matched to this 1-inch Pro-Flo Shift GPS220 configuration. Confirm the complete pump code when ordering.
WET-END REPAIR KIT
Wetted-end service kit matched to this 1-inch bolted pump with PTFE / Conductive Buna-N diaphragms. Match the installed elastomers and full ordering code.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 02-13156 and GPS220/SSAAA/TXU/TF/STF, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
