Item: 02-13173 Model: PS220/SSAAA/TNU/TF/STF/0492 Series: Pro-Flo Shift Wetted material: Stainless steel Diaphragm material: PTFE Nominal fluid port size: 1-inch Construction: Bolted
WILDEN / PRO-FLO SHIFT SERIES

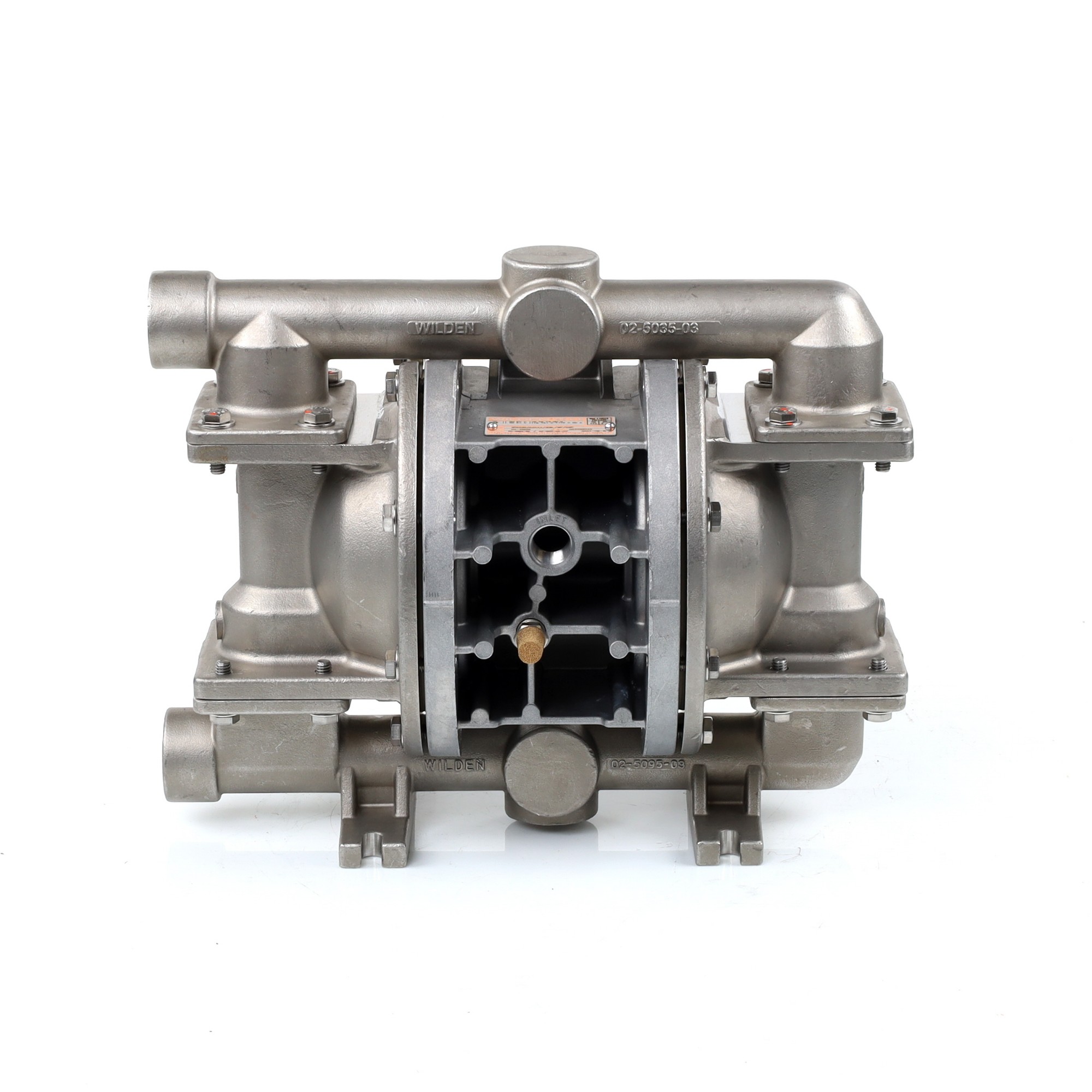

This 1-inch Pro-Flo Shift air-operated double-diaphragm pump uses stainless steel wetted housing and PTFE diaphragms. Its bolted construction is identified by the complete ordering code below.
Complete model
PS220/SSAAA/TNU/TF/STF/0492
FLUID PORT SIZE
1-inch
| Brand / item number | WILDEN / 02-13173 |
|---|---|
| Pump series | Pro-Flo Shift |
| Nominal fluid port size | 1 in |
| Construction | Bolted |
| Wetted housing | Stainless steel |
| Diaphragm material | PTFE |
| Check ball material | PTFE |
| Valve seat material | Stainless steel |
| Product family | UL Fuel Transfer |
| Maximum air supply pressure | 50 psig (approximately 3.4 bar) |
|---|
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Outer pistons | Stainless steel |
|---|---|
| Wetted O-rings / gaskets | PTFE |
| Special option code | 0492 |
AIR REPAIR KIT
Air distribution service kit matched to this 1-inch Pro-Flo Shift PS220 configuration. Confirm the complete pump code when ordering.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 02-13173 and PS220/SSAAA/TNU/TF/STF/0492, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
