Item: 04-13902 Model: P430/SSAPP/NES/NE/NE/0504 Series: Pro-Flo Wetted material: Stainless steel Diaphragm material: Neoprene Nominal fluid port size: 1.5-inch Construction: Bolted
WILDEN / PRO-FLO SERIES

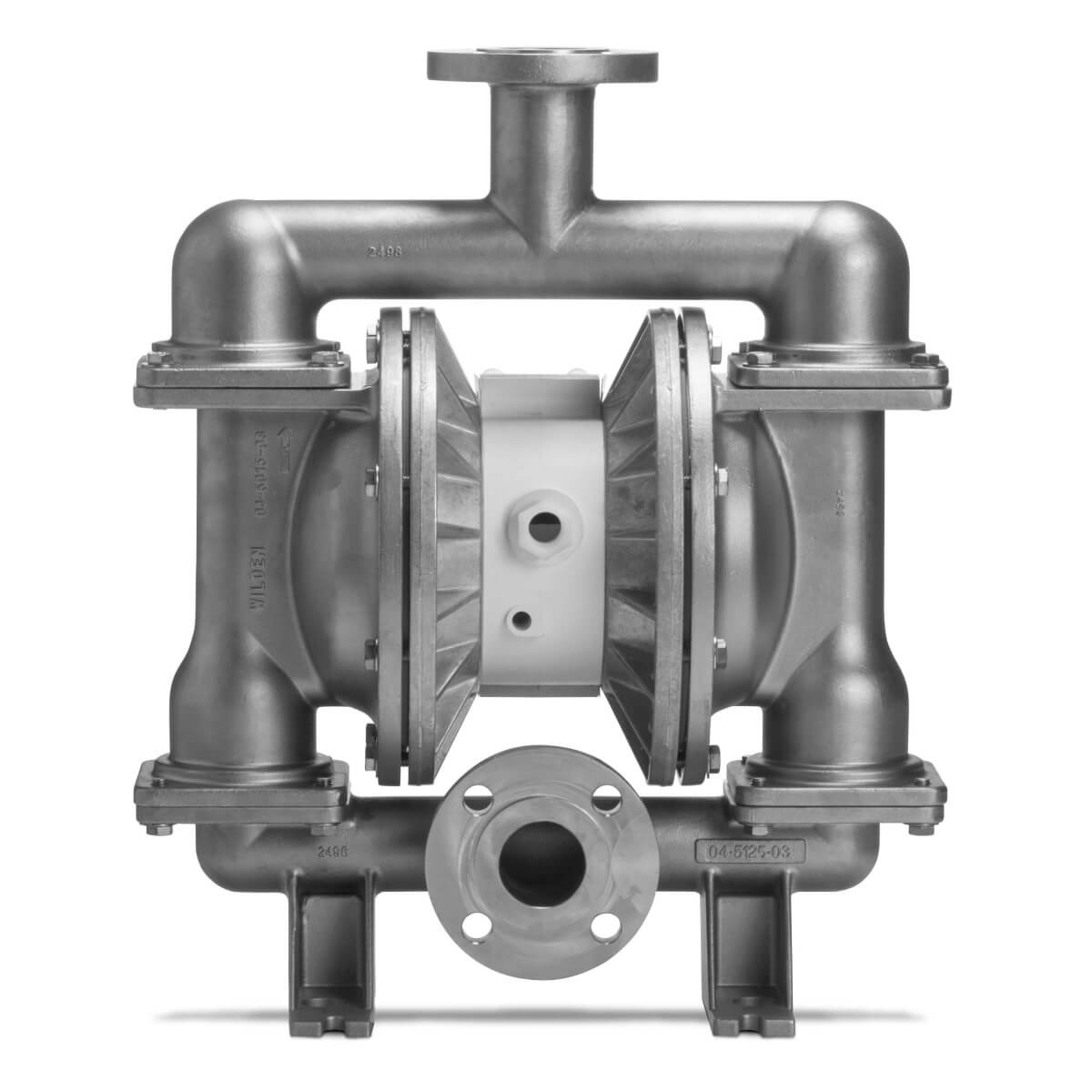

This 1.5-inch Pro-Flo air-operated double-diaphragm pump uses stainless steel wetted housing and Neoprene diaphragms. Its bolted construction is identified by the complete ordering code below.
Complete model
P430/SSAPP/NES/NE/NE/0504
FLUID PORT SIZE
1.5-inch
MAXIMUM FLOW
≈ 492.1 L/min
MAXIMUM PRESSURE
125 psig
| Brand / item number | WILDEN / 04-13902 |
|---|---|
| Pump series | Pro-Flo |
| Nominal fluid port size | 1.5 in |
| Construction | Bolted |
| Wetted housing | Stainless steel |
| Diaphragm material | Neoprene |
| Diaphragm design | TRADITIONAL |
| Diaphragm stroke | Full-Stroke |
| Check ball material | Neoprene |
| Valve seat material | Neoprene |
| Sub-series | FIT SERIES |
| Power source | Compressed Air |
| Inlet / discharge orientation | Center Horizontal Back / Center Vertical |
| Maximum flow | 130 US gpm (approximately 492.1 L/min) |
|---|---|
| Maximum operating pressure | 125 psig (approximately 8.6 bar) |
| Maximum air supply pressure | 125 psig (approximately 8.6 bar) |
| Maximum solids diameter | 0.25 in (approximately 6.3 mm) |
| Listed dry suction lift | 18.2 ft (approximately 5.55 m) |
| Listed wet suction lift | 29.5 ft (approximately 8.99 m) |
| Listed operating temperature | 32–175 °F (approximately 0.0–79.4 °C) |
| Self-priming | Yes |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Polypropylene |
|---|---|
| Outer pistons | Stainless steel |
| Wetted O-rings / gaskets | Neoprene |
| Hardware material | Stainless steel |
| Muffler | Aluminum |
| Special option code | 0504 |
Use the trace for this diaphragm configuration. Click to view the full-size image.
Use the trace for this diaphragm configuration. Click to view the full-size image.
AIR REPAIR KIT
Air distribution service kit matched to this 1.5-inch Pro-Flo P430 configuration. Confirm the complete pump code when ordering.
WET-END REPAIR KIT
Wetted-end service kit matched to this 1.5-inch bolted pump with Neoprene diaphragms. Match the installed elastomers and full ordering code.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 04-13902 and P430/SSAPP/NES/NE/NE/0504, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
