Item: S01-0018 Model: TZ1/SSAAB/TNU/TF/STF/0070 Series: Saniflo FDA Wetted material: Stainless steel Diaphragm material: PTFE Nominal fluid port size: 1/2-inch Construction: Clamped
WILDEN / SANIFLO FDA SERIES

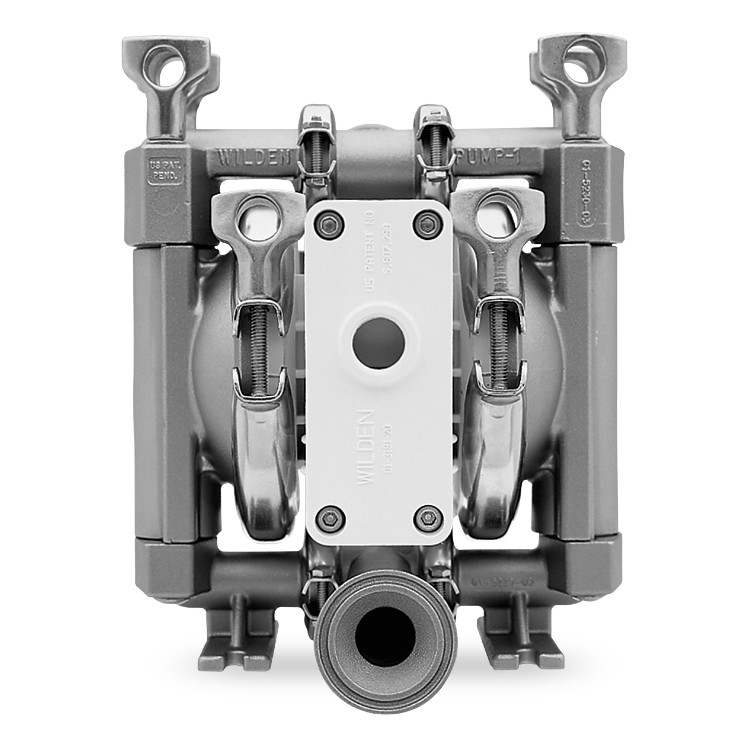

This 1/2-inch Saniflo FDA air-operated double-diaphragm pump uses stainless steel wetted housing and PTFE diaphragms. Its clamped construction is identified by the complete ordering code below.
Complete model
TZ1/SSAAB/TNU/TF/STF/0070
FLUID PORT SIZE
1/2-inch
| Brand / item number | WILDEN / S01-0018 |
|---|---|
| Pump series | Saniflo FDA |
| Nominal fluid port size | 1/2 in |
| Construction | Clamped |
| Wetted housing | Stainless steel |
| Diaphragm material | PTFE |
| Check ball material | PTFE |
| Valve seat material | Stainless steel |
| Outer pistons | Stainless steel |
|---|---|
| Wetted O-rings / gaskets | PTFE |
| Special option code | 0070 |
Quote S01-0018 and TZ1/SSAAB/TNU/TF/STF/0070, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
