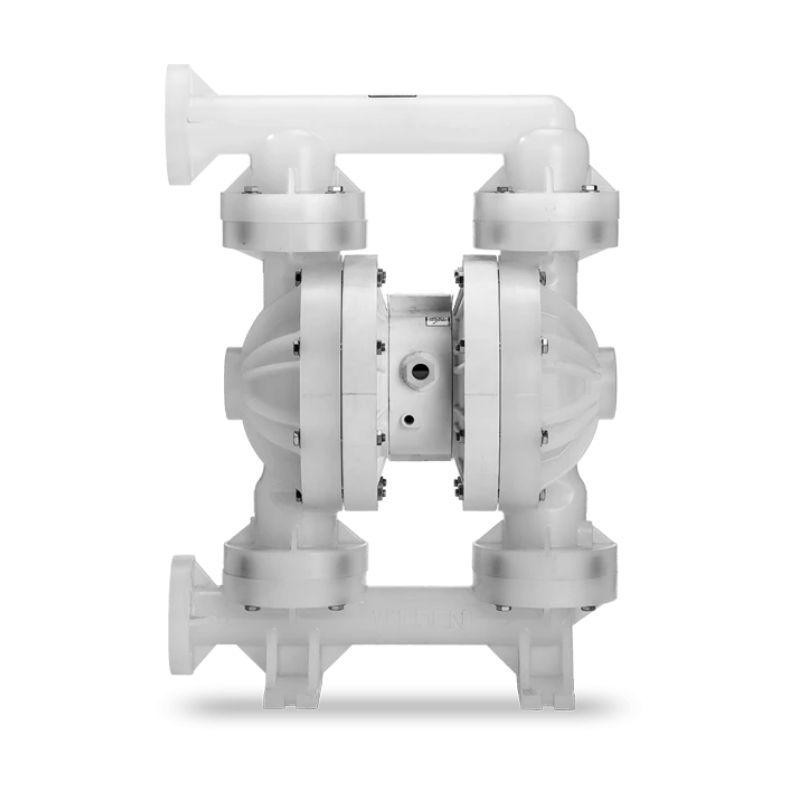

38 mm (1-1/2") Pro-Flo® Series Bolted Plastic AODD Pump

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the P400 Plastic Manual.

Flow Curve – TPE-Fitted

Note: Additional performance curves can be found in the P400 Plastic Manual.

AIR INLET

• 1/2" FNPT

LIQUID INLET

• 38 mm (1-1/2")

LIQUID DISCHARGE

• 38 mm (1-1/2")

CONNECTION TYPE

• DIN/ANSI (Flanged)

MAX FLOW RATE

• Rubber – 454 lpm (120 gpm)

• TPE – 454 lpm (120 gpm)

• Full-Stroke PTFE – 424 lpm (111.9 gpm)

• Reduced-Stroke PTFE – 318 lpm (84 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• 6.35 mm (1/4'')

MAX SUCTION LIFT CAPABILITY

• Rubber – 5.5 m (18.2') Dry, 9.0 m (29.5') Wet

• TPE – 4.8 m (15.9') Dry, 9.3 m (30.6') Wet

• Full-Stroke PTFE – 5.7 m (18.7') Dry, 9.3 m (30.6') Wet

• Reduced-Stroke PTFE – 3.3 m (10.8') Dry, 9.7 m (31.8') Wet

DISPLACEMENT PER STROKE *

• Rubber- 1.25 L (0.33 gal)

• TPE- 1.34 L (0.35 gal)

• Full-Stroke PTFE – 1.1 L (0.30 gal)

• Reduced-Stroke PTFE – 0.59 L (0.155 gal)

* 1 cycle = 2 strokes
