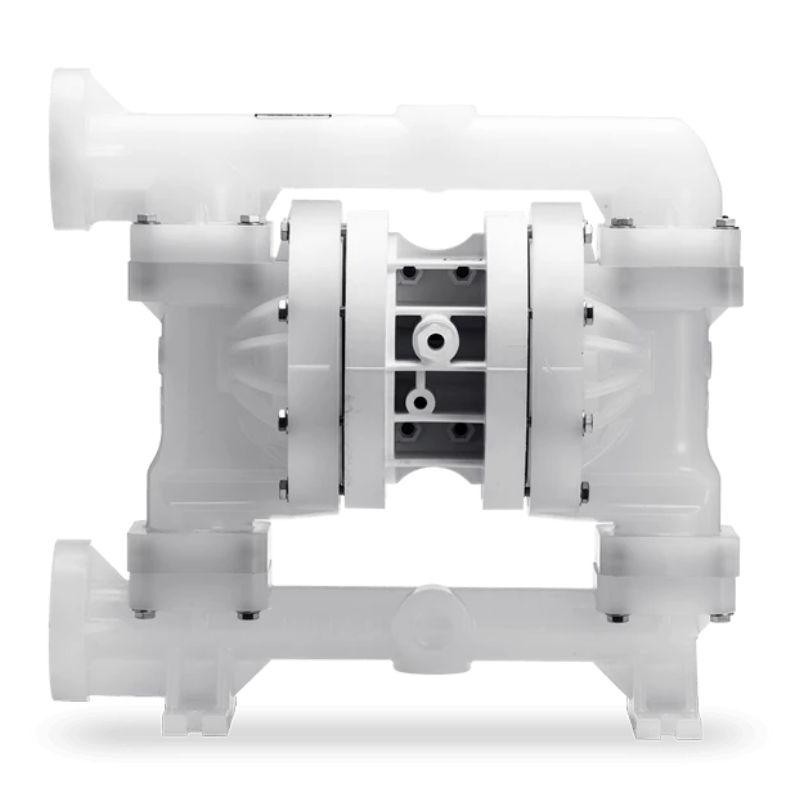

25 mm (1") Pro-Flo® Series Bolted Plastic AODD Pump

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the P200 Plastic Manual.

Flow Curve – TPE-Fitted

Note: Additional performance curves can be found in the P200 Plastic Manual.

AIR INLET

• 1/4" FNPT

LIQUID INLET

• 25 mm (1")

LIQUID DISCHARGE

• 25 mm (1")

CONNECTION TYPE

• DIN/ANSI (Flanged)

MAX FLOW RATE

• Rubber – 220 lpm (58 gpm)

• TPE – 216 lpm (57 gpm)

• Full-Stroke PTFE – 195 lpm (51.4 gpm)

• Reduced-Stroke PTFE – 174 lpm (46 gpm)

MAX PRESSURE

• 8.6 bar (125 psi) on Polypropylene and PVDF pumps

MAX DIAMETER SOLIDS

• 4.76 mm (3/16")

MAX SUCTION LIFT CAPABILITY

• Rubber – 3.6 m (11.9') Dry, 9.1 m (30.0') Wet

• TPE – 3.5 m (11.4') Dry, 9.8 m (32.0') Wet

• Full-Stroke PTFE – 3.5 m (11.4') Dry, 8.6 m (28.4') Wet

• Reduced-Stroke PTFE – 2.4 m (7.9') Dry, 9.4 m (31.0') Wet

DISPLACEMENT PER STROKE *

• Rubber – 0.32 L (0.09 gal)

• TPE – 0.33 L (0.09 gal)

• Full-Stroke PTFE – 0.5 L (0.13 gal)

• Reduced-Stroke PTFE – 0.22 L (0.06 gal)

* 1 cycle = 2 strokes
