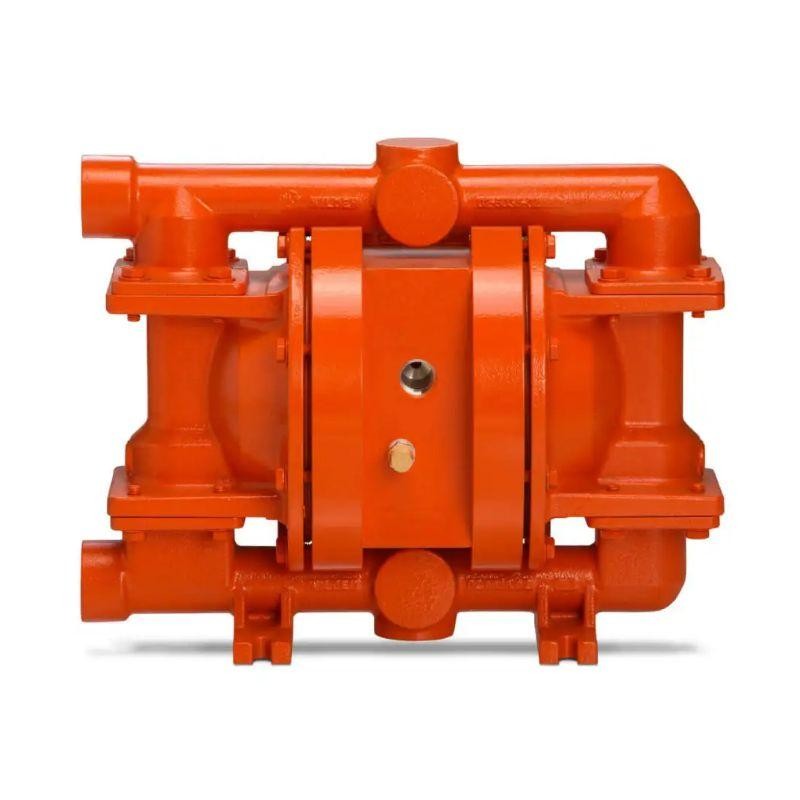

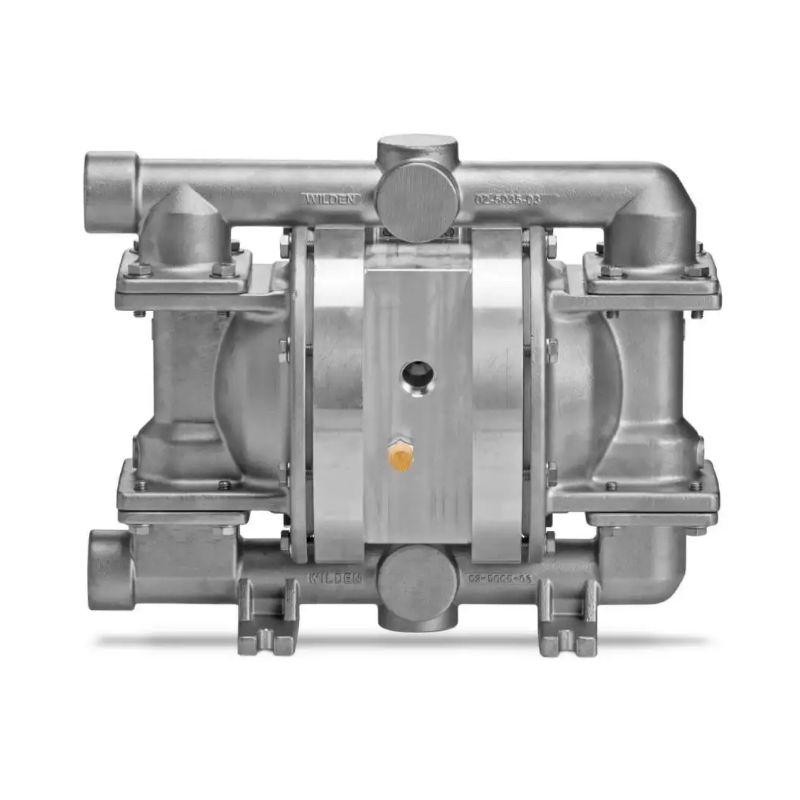

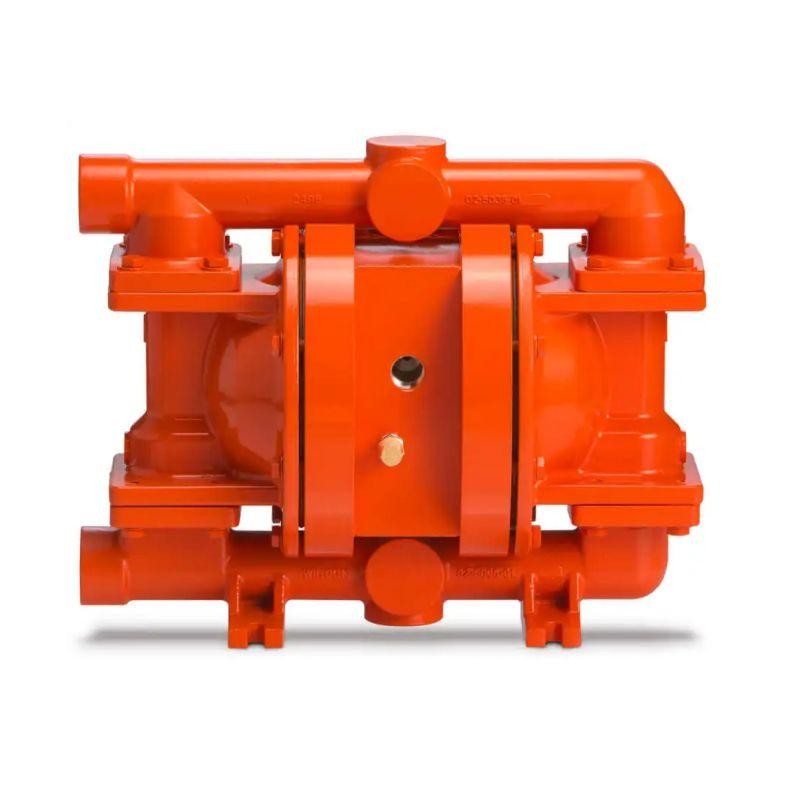

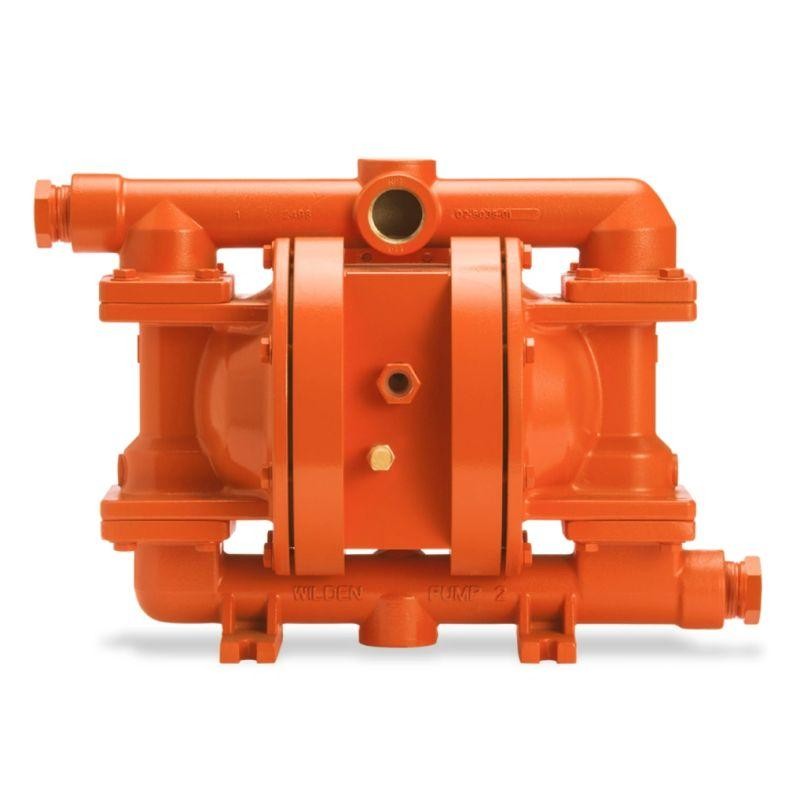

25 mm (1") Pro-Flo® SHIFT Series Bolted Metal AODD Pump

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the PS220/PS230 Metal Manual.

Flow Curve – TPE-Fitted

Note: Additional performance curves can be found in the PS220/PS230 Metal Manual.

AIR INLET

• 1/2" FNPT

LIQUID INLET

• 25 mm (1")

LIQUID DISCHARGE

• 25 mm (1")

CONNECTION TYPE

• NPT/BSPT (Threaded)

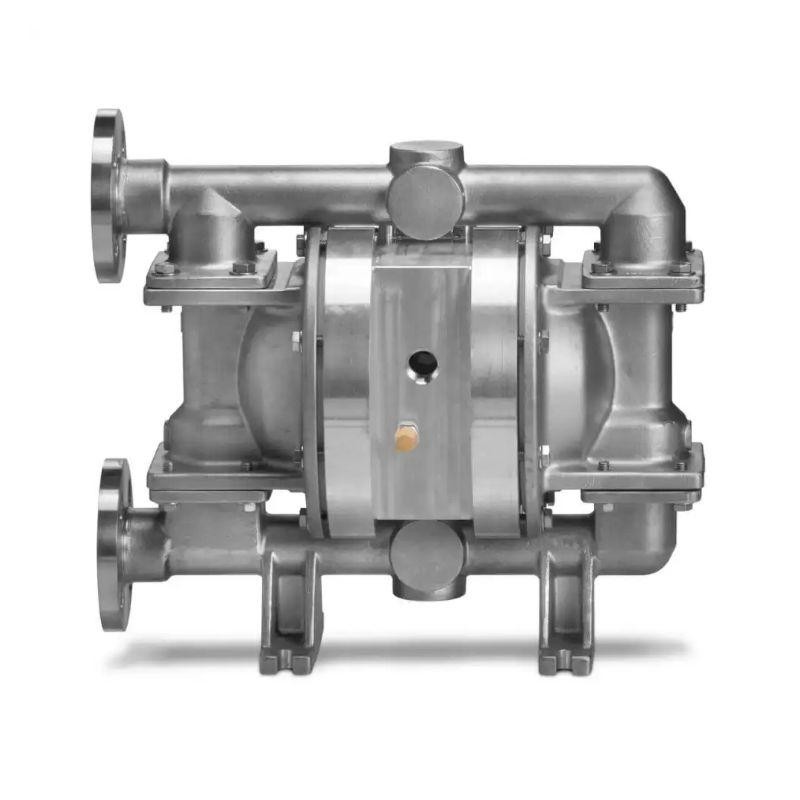

• DIN/ANSI (Flanged)

MAX FLOW RATE

• Rubber – 204 lpm (54 gpm)

• TPE – 212 lpm (56 gpm)

• Full-Stroke PTFE – 197 lpm (52 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• 6.4 mm (1/4")

MAX SUCTION LIFT CAPABILITY

• Rubber – 6.9 m (22.7') Dry, 9.0 m (29.5') Wet

• TPE – 5.9 m (19.3') Dry, 9.0 m (29.5') Wet

• Full-Stroke PTFE – 5.2 m (17.0') Dry, 9.0 m (29.5') Wet

DISPLACEMENT PER STROKE *

• Rubber – 0.30 L (0.08 gal)

• TPE – 0.26 L (0.07 gal)

• Full-Stroke PTFE – 0.30 L (0.08 gal)

* 1 cycle = 2 strokes

Wetted Housings

Non-Wetted Housings
