Item: 04-13257 Model: PS4/SSSPP/VTS/VT/VT/0014 Series: Pro-Flo Shift Wetted material: Stainless steel Diaphragm material: FKM Nominal model size: 1.5-inch Construction: Clamped Connection standard: BSPT Actual fluid inlet size: 1.5 in Actual fluid discharge size: 1.5 in
WILDEN / PRO-FLO SHIFT SERIES

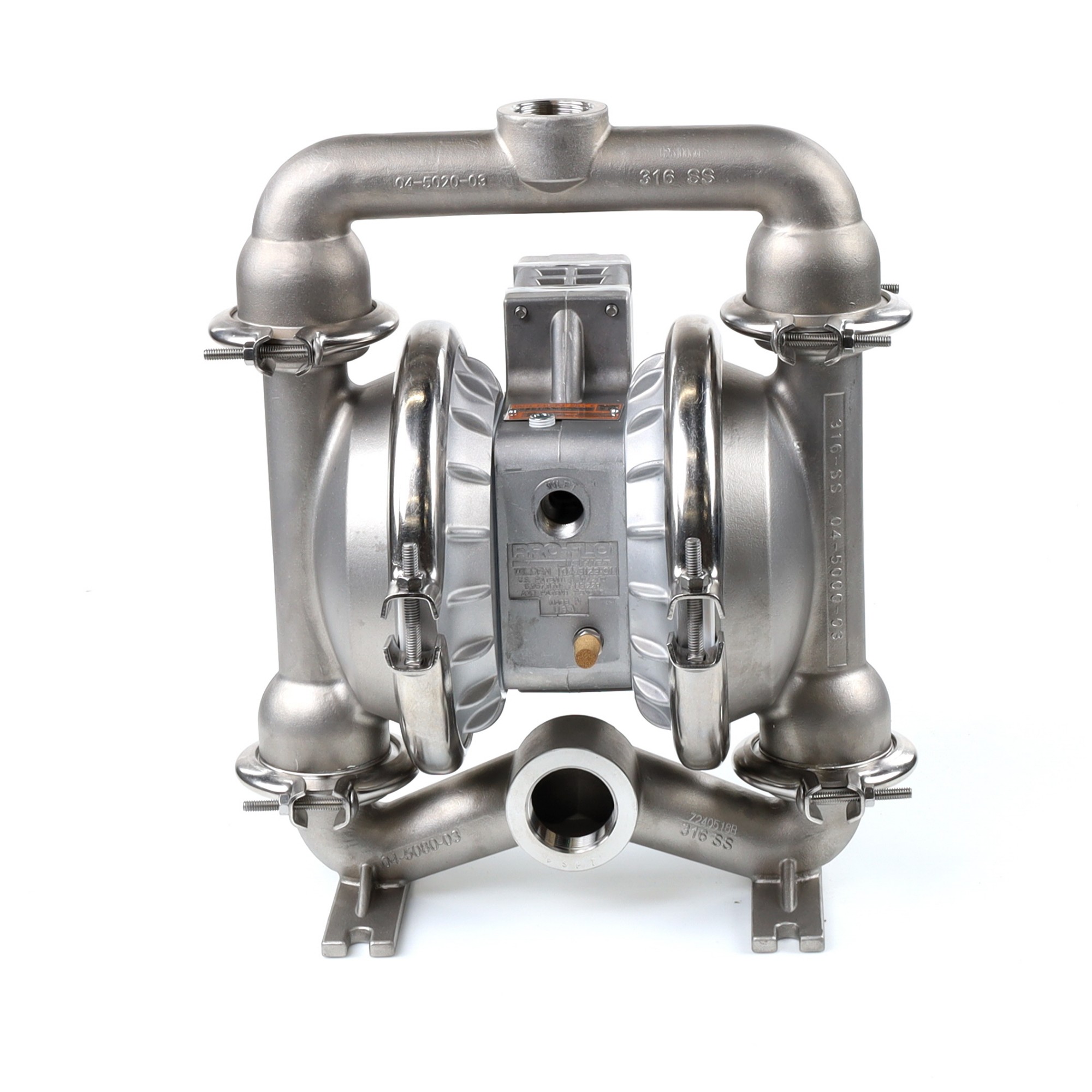

This 1.5-inch Pro-Flo Shift air-operated double-diaphragm pump uses stainless steel wetted housing and FKM diaphragms. Its clamped construction is identified by the complete ordering code below. Fluid connections use the BSPT standard.
Complete model
PS4/SSSPP/VTS/VT/VT/0014
NOMINAL MODEL SIZE
1.5-inch BSPT
MAXIMUM FLOW
≈ 310.4 L/min
MAXIMUM PRESSURE
125 psig
| Brand / item number | WILDEN / 04-13257 |
|---|---|
| Pump series | Pro-Flo Shift |
| Nominal model size | 1.5 in |
| Actual fluid inlet size | 1.5 in |
| Actual fluid discharge size | 1.5 in |
| Construction | Clamped |
| Wetted housing | Stainless steel |
| Diaphragm material | FKM |
| Diaphragm design | TRADITIONAL |
| Diaphragm stroke | Full-Stroke |
| Check ball material | FKM |
| Valve seat material | FKM |
| Connection standard | BSPT |
| Power source | Compressed Air |
| Inlet / discharge orientation | Center Horizontal Back / Center Vertical |
| Maximum flow | 82 US gpm (approximately 310.4 L/min) |
|---|---|
| Maximum operating pressure | 125 psig (approximately 8.6 bar) |
| Maximum air supply pressure | 125 psig (approximately 8.6 bar) |
| Listed dry suction lift | 22.9 ft (approximately 6.98 m) |
| Listed wet suction lift | 28.4 ft (approximately 8.66 m) |
| Listed operating temperature | 32–175 °F (approximately 0.0–79.4 °C) |
| Self-priming | Yes |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Polypropylene |
|---|---|
| Outer pistons | Stainless steel |
| Wetted O-rings / gaskets | FKM |
| Hardware material | Stainless steel |
| Muffler | Aluminum |
| Special option code | 0014 |
AIR REPAIR KIT
Air distribution service kit matched to this 1.5-inch Pro-Flo Shift PS4 configuration. Confirm the complete pump code when ordering.
WET-END REPAIR KIT
Wetted-end service kit matched to this 1.5-inch clamped pump with FKM diaphragms. Match the installed elastomers and full ordering code.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 04-13257 and PS4/SSSPP/VTS/VT/VT/0014, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
